Product Description:
Choose the Hydraulic Hammer for your next project and experience the power and precision of this essential tool in action.
Product Advantages
Why Choose Us: Premium Quality Hydraulic Breakers & Attachments
Our company is recognized in the industry for superior product quality, advanced manufacturing processes, and outstanding customer service. Here’s what sets our hydraulic breakers and excavator attachments apart:
"Please Contact Service to Get Catalog — Match the Perfect Breaker for Your Machinery."
GUCHUAN Hydraulic Breaker 4 Main Types:
>>> Backhoe Loader Type:
- Compact & Lightweight Design;
- Fast switching between digging and breaking;
- Easy Maintenance.
>>> Side Type:
- Good for tight spaces;
- Hook back things conveniently;
- Easy Maintenance.
>>> Top Type:
- Easy to locate and control;
- Better power transmission;
- Weight lighter, the lower risk of broken drill rod.
>>> Box/Silence Type:
- Reduce noise to protect the environment;
- Full-closed design protects the main body from damage;
- Add damping modules to protect main body, enhanced durability.
How To Choose Suitable Chisels?

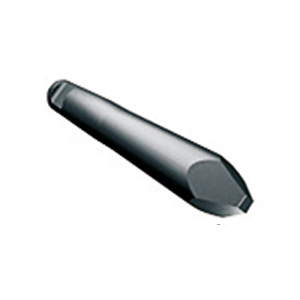

Moil Point Chisel
- General use with demolition work and inquarriers;
- Breaking up slag insteel mills;
- Demolishing foundations;
- Roadway drivage and roadway shots in mining.
Blunt chisel
- Crushing large rock piecesin quarries;
- Crushing slag;
- Group compression.
Flat Chisel
- General use with additional cutting cation
- Drawing pits in rocky subsoil
- Separating rock slabs
Conical Chisel
- General demolition work where penetrative breaking is required.
| Light Weight Range Hydraulic Breaker |
| Model No. | Chisel Diameter (mm) | Excavator Weight (ton) | Body Weight (kg) | Working Flow Rate (L/min) | Working Pressure (Bar) | Impact Rate (bpm) |
| SB10/GCB40 | 40 | 0.8-2.5 | 73 | 15-30 | 90-120 | 800-1400 |
| SB20/GCB45 | 45 | 1.2-3.0 | 100 | 20-40 | 90-120 | 700-1200 |
| SB30/GCB50 | 53 | 2.5-4.5 | 120 | 20-50 | 90-120 | 500-900 |
| SB40/GCB60 | 68 | 4.0-7.0 | 298 | 40-70 | 110-140 | 400-800 |
| Medium Weight Range Hydraulic Breaker |
| SB43/GCB75 | 75 | 6.0-9.0 | 375 | 50-90 | 120-150 | 400-800 |
| SB50/GCB100 | 100 | 11-16 | 890 | 80-110 | 150-170 | 350-700 |
| SB81/GCB22O | 140 | 18-26 | 1754 | 120-180 | 160-180 | 350-500 |
| SB81A/GCB220 | 140 | 18-26 | 1773 | 120-180 | 160-180 | 350-500 |
| HB20G/GCB200 | 135 | 18-25 | 1680 | 125-150 | 160-180 | 400-800 |
| Large Weight Range Hydraulic Breaker |
| SB121/GCB320 | 155 | 28-35 | 2555 | 180-240 | 160-180 | 300-450 |
| SB131/GCB350 | 165 | 35-43 | 3065 | 200-260 | 160-180 | 250-400 |
| HB30G/GCB300 | 150 | 25-30 | 2305 | 160-190 | 160-180 | 350-700 |
| GCB500 | 195 | 50-60 | 5350 | 245-290 | 230-250 | 100-150 |
| GCB650 | 210 | 65-100 | 7200 | 290-340 | 250-270 | 90-130 |
Jiangsu Guchuan Machinery Co., Ltd. founded in 2010, is located in Jiangsu Changzhou (Close to Shanghai), is dedicated to hydraulic crushing hammer and key parts of the R&D, manufacturing, and service. At present, Guchuan covers an area of more than 18,000 square meters, has 110+ employees, including 19 R&D technology and quality control personnel, and 56 direct manufacturing personnel. We have a skilled, experienced after-sales service team to provide customers with training, regular overhaul, maintenance, upgrade, and other comprehensive services.
Guchuan hold 3 invention patents, 23 utility model patents, 15 intellectual property rights, and is recognized as a China High-Tech Enterprise.
In 2019, Guchuan successfully self-developed automatic frequency conversion hydraulic crushing hammer.
Through complete product development, process development, control, and standard operations to ensure the products delivered to customers are 100% qualified.
